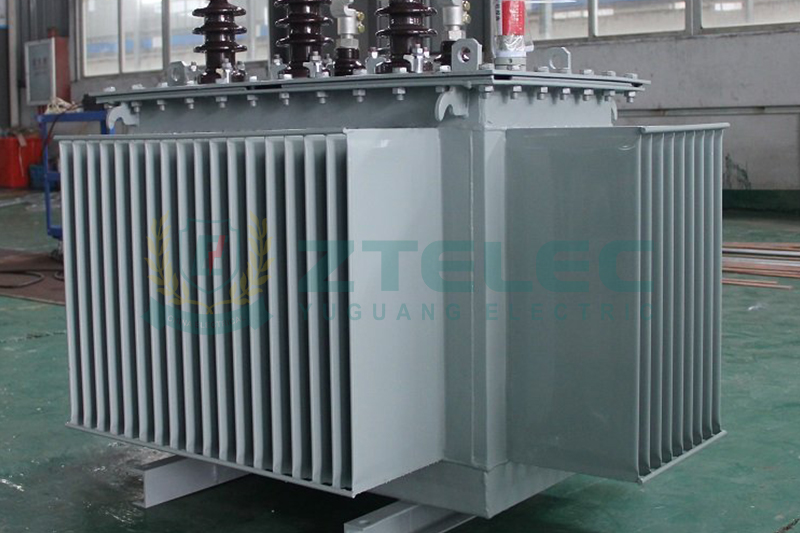

A 1500 KVA oil filled transformer is one of the most widely used medium-capacity distribution transformers for industrial plants, commercial buildings, renewable energy projects, and utility substations. Offering outstanding thermal performance, excellent overload capability, and long service life, it remains the preferred solution for outdoor electrical distribution where reliability is essential.
Modern 1500 kVA transformers are available with fully customized primary and secondary voltage ratios, allowing engineers to match local grid requirements, industrial equipment, solar farms, mining operations, and export standards worldwide. Whether your project requires 11kV/400V, 33kV/11kV, 13.8kV/480V, or other custom configurations, manufacturers can tailor the transformer to your exact specifications.
A 1500 KVA transformer has a rated apparent power capacity of 1.5 MVA and uses insulating oil as both the cooling and dielectric medium. The transformer transfers electrical energy between different voltage levels while maintaining high efficiency and minimizing transmission losses.

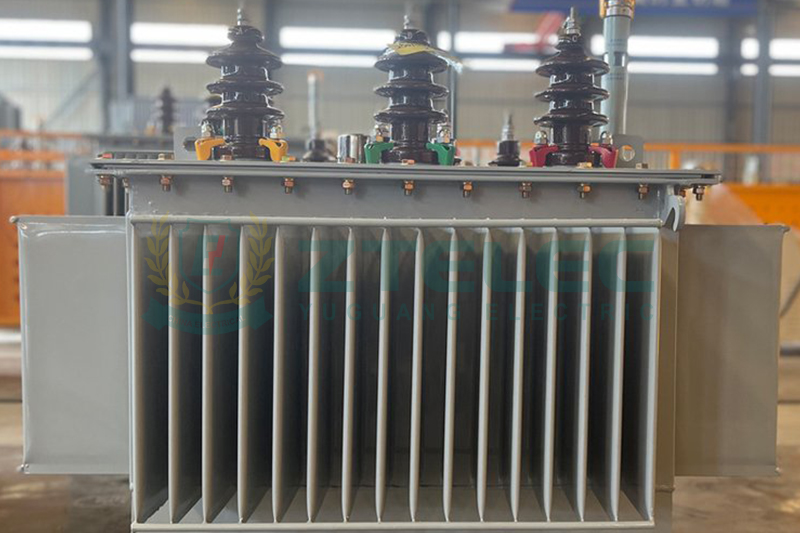

Unlike dry-type transformers that rely on air cooling, oil immersed transformers circulate insulating oil around the windings and magnetic core. This significantly improves heat dissipation, reduces operating temperatures, and extends equipment lifespan.
Typical applications include:
Industrial manufacturing facilities, mining operations, commercial complexes, hospitals, data centers, utility substations, solar power stations, wind farms, railway systems, airports, petrochemical plants, and municipal infrastructure.
Transformer oil efficiently removes heat from the core and windings, allowing continuous operation even under heavy loads and high ambient temperatures.
The insulating oil provides excellent dielectric strength, reducing the risk of partial discharge, flashover, and insulation failure during long-term operation.
For transformers above 1000 KVA, oil immersed designs typically offer lower purchase costs and lower total ownership costs than comparable dry-type transformers.
With routine maintenance, high-quality oil filled transformers commonly operate reliably for more than 30 years.
Superior cooling enables oil transformers to withstand temporary overload conditions better than air-cooled alternatives.
| Parameter | Typical Specification |
|---|---|
| Rated Capacity | 1500 KVA (1.5 MVA) |
| Frequency | 50 Hz / 60 Hz |
| Phase | Three Phase |
| Primary Voltage | 3.3kV – 35kV (Custom Available) |
| Secondary Voltage | 400V, 415V, 480V, 690V, 3.3kV, 6.6kV, 11kV |
| Cooling Method | ONAN / ONAF |
| Vector Group | Dyn11, Yyn0, Yd11 or Customized |
| Impedance | 4%–8% |
| Efficiency | Up to 99% |
| Insulation Class | Class A / Class F |
| Tap Changer | Off-Circuit or On-Load Tap Changer |
| Applicable Standards | IEC 60076, IEEE C57.12, ANSI, BS, GB/T |
One of the biggest advantages of ordering a custom transformer is the flexibility to match virtually any distribution system.
| Primary Voltage | Secondary Voltage | Typical Application |
|---|---|---|
| 33kV | 11kV | Utility Substations |
| 22kV | 400V | Industrial Plants |
| 13.8kV | 480V | North American Facilities |
| 11kV | 415V | Commercial Buildings |
| 11kV | 400V | Factories & Manufacturing |
| 6.6kV | 400V | Marine & Mining Projects |
| Custom | Custom | OEM & Export Projects |
Custom voltage ratios eliminate unnecessary conversion equipment, reduce transmission losses, improve compatibility with existing electrical systems, and simplify future expansion projects. They also ensure compliance with local utility standards across Europe, North America, Asia, Africa, and the Middle East.
Steel mills, cement plants, textile factories, food processing facilities, chemical plants, paper mills, and automotive manufacturing lines require stable power for heavy equipment and production systems.
Shopping centers, hospitals, hotels, office buildings, universities, airports, and convention centers benefit from reliable voltage regulation and continuous operation.
Solar photovoltaic farms, wind power stations, battery energy storage systems, and hybrid renewable projects use 1500 KVA transformers to step up or step down voltage for grid integration.
Distribution substations, rural electrification projects, municipal power systems, and smart grid infrastructure rely on these transformers for dependable electrical distribution.
Railways, metro systems, tunnels, ports, mining sites, and oil & gas facilities require durable transformers capable of operating in demanding environments.
| Feature | Oil Filled Transformer | Dry Type Transformer |
|---|---|---|
| Cooling Efficiency | Excellent | Good |
| Outdoor Installation | Excellent | Requires Enclosure |
| Large Capacity Performance | Excellent | Moderate |
| Initial Cost | Lower | Higher |
| Service Life | 30–40 Years | 20–25 Years |
| Overload Capability | Higher | Lower |
| Maintenance | Regular Oil Inspection | Minimal |
Proper installation directly influences transformer performance and service life. The foundation should be level and capable of supporting the transformer weight. Adequate ventilation and clearance should be maintained around the unit to ensure efficient heat dissipation.
Grounding must comply with local electrical codes, while cable connections should be securely tightened to minimize resistance and overheating. Before commissioning, insulation resistance testing, transformer ratio testing, winding resistance testing, and oil dielectric testing should all be completed.
Preventive maintenance significantly extends transformer life and reduces unexpected downtime.
| Maintenance Item | Recommended Interval |
|---|---|
| Oil Level Inspection | Monthly |
| Oil Quality Analysis | Every 6–12 Months |
| Insulation Resistance Test | Annually |
| Bushing Inspection | Every 6 Months |
| Temperature Monitoring | Continuous |
| Transformer Ratio Test | Annually |
Reliable manufacturers design 1500 KVA transformers according to internationally recognized standards including IEC 60076, IEEE C57.12, ANSI, GB/T 1094, BS EN standards, and ISO 9001 quality management systems.
Additional certifications such as CE, UL, SGS, CSA, and third-party testing reports may also be available depending on export destination.
When comparing transformer suppliers, buyers should evaluate manufacturing experience, engineering capabilities, production capacity, testing facilities, certification, customization options, delivery time, warranty coverage, and global after-sales support.
Manufacturers offering complete factory acceptance tests (FAT), type test reports, and custom engineering services generally provide greater long-term value than suppliers focused solely on price.
The price of a 1500 KVA oil immersed transformer depends on voltage class, core material, copper or aluminum windings, tap changer type, efficiency level, cooling method, accessories, destination country, and compliance requirements.
Although project costs vary, buyers should evaluate the total lifecycle cost rather than initial purchase price alone. High-efficiency transformers reduce operating losses and electricity costs throughout decades of service.
Yes. Manufacturers can customize both primary and secondary voltages according to local utility standards and project requirements.
ONAN (Oil Natural Air Natural) is the standard cooling method, while ONAF (Oil Natural Air Forced) is available for higher loading conditions.
With proper installation and maintenance, service life commonly exceeds 30 years.
Yes. These transformers are widely used in photovoltaic, wind power, battery storage, and renewable energy grid connection projects.
Standard accessories often include Buchholz relay, pressure relief device, oil level indicator, temperature indicator, drain valve, lifting lugs, earthing terminals, and off-circuit tap changer.
A 1500 KVA oil filled transformer offers an excellent balance of efficiency, durability, flexibility, and long-term operating economy. Its ability to support customized voltage ratios makes it suitable for nearly every industrial, commercial, renewable energy, and utility application worldwide.
Whether you are building a new substation, upgrading factory electrical infrastructure, integrating renewable energy, or expanding a commercial power distribution network, selecting a high-quality transformer from an experienced manufacturer ensures reliable performance for decades while minimizing maintenance costs and energy losses.
