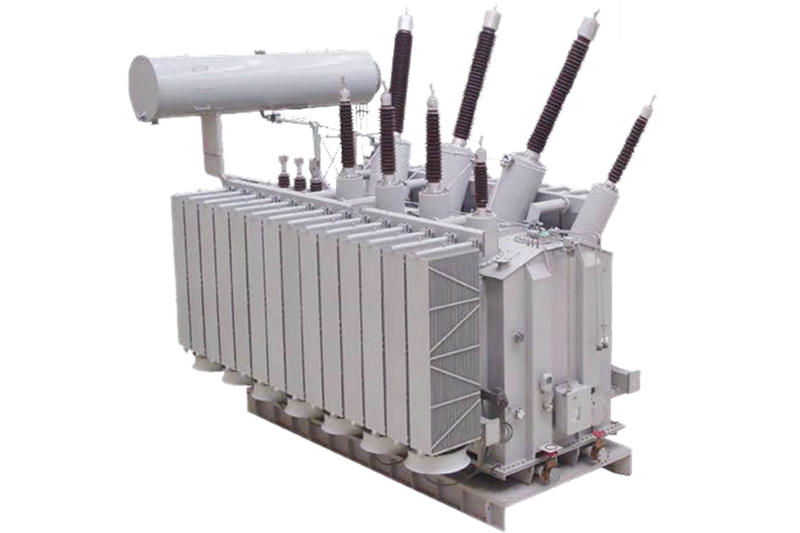

220kV Power Transformer (230kV/220kV) for High-Voltage Transmission Systems

The 230kV/220kV power transformer is a critical component in modern high-voltage power transmission and distribution networks. Designed to operate between 230kV and 220kV voltage levels, this transformer ensures efficient energy transfer, voltage regulation, and grid stability across long-distance transmission systems and large-scale industrial applications.

Core Features of 230kV/220kV Power Transformer

This high-voltage transformer is engineered to handle dual voltage levels of 230kV on the high-voltage side and 220kV on the low-voltage side. It can function as both a step-up transformer and a step-down transformer depending on system requirements, offering flexibility in power grid operations and infrastructure integration.

In long-distance power transmission, stepping up voltage helps reduce line losses and improve transmission efficiency. Conversely, stepping down voltage ensures safe and reliable distribution to substations and end users. This adaptability makes the 220kV power transformer an indispensable asset in national grids and utility-scale projects.

The transformer adopts a three-phase design, which ensures balanced electrical load distribution and enhances transmission efficiency. Its robust insulation system and advanced structural design enable it to withstand high electrical stress, temperature variations, and harsh environmental conditions.

Model Specification: SFSZ20-240000/220

The SFSZ20-240000/220 model is a high-capacity 220kV power transformer designed for large-scale transmission projects. It features high efficiency, low loss performance, and strong overload capacity, making it suitable for power plants, substations, and grid interconnection systems.

Quality Assurance and International Standards

All 220kV power transformers are manufactured under a strict quality management system in compliance with GB/T 19001-2016 and ISO 9001:2015 standards. From design and material procurement to production, testing, and delivery, every stage is carefully controlled to ensure consistent product quality and long-term operational reliability.

The transformers are certified with UL and cUL compliance, meeting both U.S. and Canadian safety standards. Additionally, CE certification confirms conformity with European regulations and international benchmarks.

The product design and testing strictly follow IEC standards, including EN 60076-1:2011, EN 60076-2:2011, and EN 60076-14:2013. Each transformer undergoes comprehensive factory testing in certified laboratories before delivery, ensuring stable performance and dependable operation in real-world applications.

Applications of 220kV Power Transformers

These transformers are widely used in high-voltage transmission networks, power generation plants, utility substations, renewable energy integration projects, and large industrial facilities. Their ability to efficiently convert voltage levels supports reliable electricity supply and enhances overall grid performance.

Reliable High-Voltage Power Solution

With advanced engineering, strict quality control, and compliance with global standards, the 230kV/220kV power transformer delivers exceptional performance in demanding environments. It plays a vital role in ensuring safe, efficient, and stable power transmission across modern electrical infrastructure systems.
