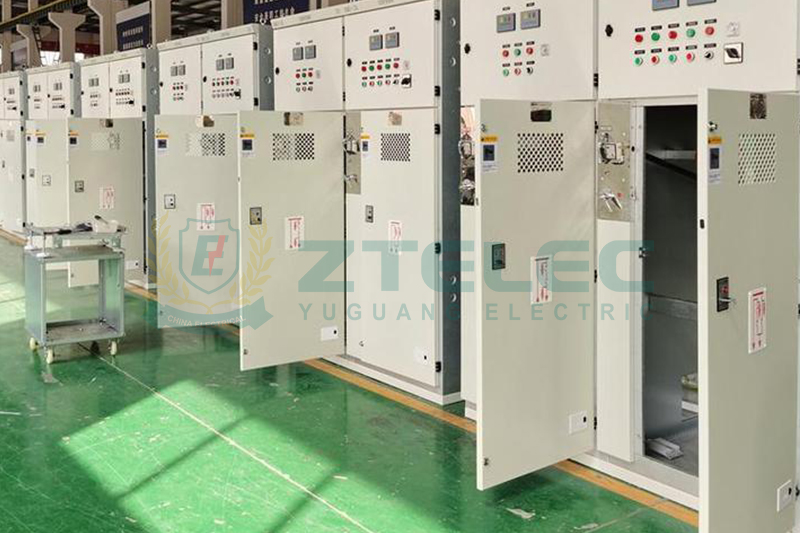

The KYN61-40.5 metal-clad withdrawable switchgear is one of the most widely used medium-voltage switchgear solutions for 35kV power distribution systems. It is extensively deployed in substations, power plants, industrial parks, mining operations, utility companies, renewable energy projects, and large-scale infrastructure developments. Thanks to its fully metal-enclosed construction, reliable vacuum circuit breaker technology, and comprehensive five-interlock safety system, the KYN61-40.5 switchgear has become an essential component of modern power distribution networks.
As smart grids, digital substations, and renewable energy integration continue to expand worldwide, utilities and industrial users demand higher levels of operational reliability, intelligent monitoring, and personnel safety. This guide provides a comprehensive overview of the KYN61-40.5 switchgear, covering its technical specifications, structural design, selection principles, installation requirements, maintenance practices, and future development trends to help engineers, EPC contractors, and procurement professionals make informed decisions.
KYN61-40.5 is an indoor metal-clad withdrawable AC switchgear designed for systems with a rated voltage of 40.5kV. It adopts a centrally mounted withdrawable vacuum circuit breaker (VCB) structure and is suitable for 35kV power distribution systems operating at 50Hz or 60Hz.
The switchgear is manufactured in accordance with IEC 62271-200, GB/T 3906, and GB/T 11022 standards. It performs critical functions including power reception, distribution, control, protection, monitoring, and fault isolation, making it one of the core devices in modern medium-voltage electrical systems.
K: Metal-Clad Construction
Y: Withdrawable Type
N: Indoor Installation
61: Design Serial Number
40.5: Rated Maximum Voltage (40.5kV)
KYN61-40.5 switchgear is widely used in a broad range of 35kV medium-voltage distribution systems, including:
35kV utility substations operated by national and regional power grid companies.
Auxiliary power distribution systems in thermal, hydroelectric, wind, and nuclear power plants.
Solar photovoltaic power stations, battery energy storage systems (BESS), and renewable energy grid-connection projects.
Large industrial facilities including steel mills, cement plants, mining operations, petrochemical plants, and manufacturing facilities.
Rail transit systems, airports, ports, municipal infrastructure projects, and hyperscale data centers.
Commercial complexes, high-rise buildings, industrial parks, hospitals, and public utility distribution centers.
| Technical Parameter | Specification |
|---|---|
| Rated Voltage | 40.5kV |
| Maximum Operating Voltage | 42kV |
| Rated Frequency | 50Hz / 60Hz |
| Rated Current | 1250A, 1600A, 2000A, 2500A, 3150A |
| Rated Short-Circuit Breaking Current | 20kA, 25kA, 31.5kA, 40kA |
| Rated Short-Time Withstand Current | 20kA, 25kA, 31.5kA, 40kA (4 seconds) |
| Rated Peak Withstand Current | 50kA, 63kA, 80kA, 100kA |
| Power Frequency Withstand Voltage | 95kV |
| Lightning Impulse Withstand Voltage | 185kV |
| Protection Degree | IP4X (Enclosure), IP2X (Compartment) |
| Mechanical Life | ≥10,000 Operations |
| Applicable Standards | IEC 62271-200, GB/T 3906, GB/T 11022 |

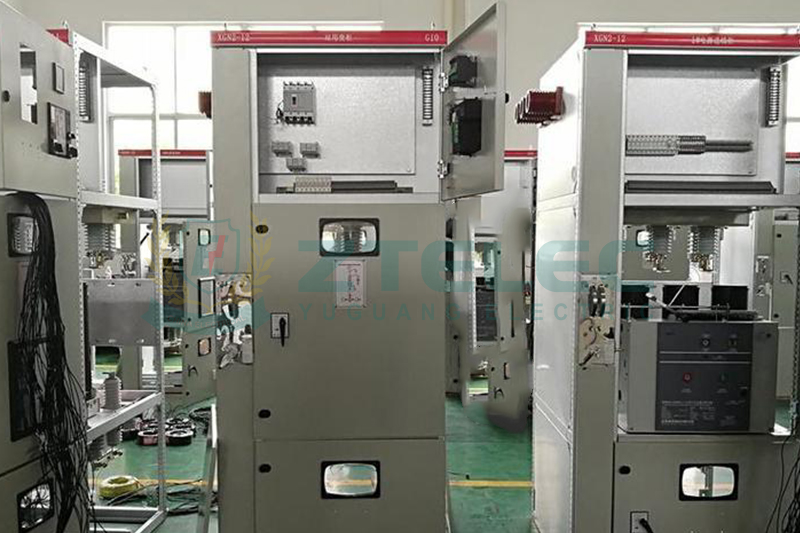

The KYN61-40.5 switchgear adopts a fully metal-clad, compartmentalized design in which each functional unit is completely separated. This structure effectively prevents fault propagation, improves personnel safety, and enhances the overall reliability of the power distribution system.
The enclosure is manufactured from high-quality cold-rolled steel sheets with precision CNC processing and electrostatic powder coating. It provides excellent mechanical strength, corrosion resistance, and long-term durability in demanding industrial environments.
The circuit breaker compartment accommodates a withdrawable vacuum circuit breaker (VCB) truck. Vacuum interrupters provide excellent arc-extinguishing performance, long electrical life, minimal maintenance requirements, and outstanding switching reliability.
The withdrawable design allows operators to easily move the breaker between the Service, Test, and Isolated positions, significantly reducing maintenance downtime while improving operational safety.
The busbar compartment adopts a fully enclosed structure with high-conductivity copper or aluminum busbars insulated by heat-shrink tubing. This design improves dielectric performance while minimizing the risk of phase-to-phase faults.
An integrated pressure relief channel safely releases excessive internal pressure in the unlikely event of an internal arc fault, protecting both equipment and personnel.
The spacious cable compartment supports flexible cable termination and can accommodate current transformers (CTs), voltage transformers (VTs/PTs), surge arresters, grounding switches, and various cable accessories.
The compartment is designed to facilitate convenient cable installation while ensuring sufficient insulation clearance for safe long-term operation.
The low-voltage compartment houses protection relays, intelligent control units, meters, communication devices, terminal blocks, and automation equipment.
Its modular design allows easy integration with SCADA systems, substation automation platforms, and intelligent power monitoring systems.
KYN61-40.5 switchgear incorporates a comprehensive five-interlock mechanical safety system that complies with IEC and Chinese safety standards. These interlocks effectively prevent dangerous operating mistakes and greatly enhance operator safety.
Prevent opening or closing the isolating switch under load.
Prevent incorrect opening or closing of the circuit breaker.
Prevent closing the circuit breaker while the grounding switch is engaged.
Prevent operating the grounding switch on an energized circuit.
Prevent personnel from entering energized compartments.
Using mature vacuum interruption technology and metal-clad compartmentalized construction, the switchgear delivers stable performance under demanding operating conditions while minimizing equipment failure rates.
The metal-enclosed structure, internal arc-resistant design, pressure relief channels, and five-interlock safety mechanism provide comprehensive protection for operators during switching and maintenance operations.
Each compartment is independently accessible, making inspection, maintenance, component replacement, and future system upgrades simple and efficient.
The switchgear can be equipped with vacuum circuit breaker trucks, voltage transformer trucks, isolation trucks, metering units, and various intelligent protection schemes to meet different project requirements.
High-quality mechanical components, premium insulation materials, and advanced manufacturing processes ensure long operating life with low maintenance costs.
| Component | Available Options |
|---|---|
| Circuit Breaker | Vacuum Circuit Breaker (VCB) |
| Rated Current | 1250A / 1600A / 2000A / 2500A / 3150A |
| Short-Circuit Breaking Capacity | 20kA / 25kA / 31.5kA / 40kA |
| Current Transformer | Protection Type / Metering Type |
| Voltage Transformer | Withdrawable PT Truck or Fixed PT |
| Protection Relay | Conventional Relay or Digital Protection Relay |
| Communication Protocol | Modbus, IEC 61850, IEC 60870-5-103 |
| Online Monitoring | Temperature Monitoring, Partial Discharge Monitoring, Arc Flash Detection |
| Optional Accessories | Surge Arresters, Grounding Switches, Space Heaters, Intelligent Control Units |
Selecting the appropriate KYN61-40.5 switchgear requires a comprehensive evaluation of system voltage, load capacity, short-circuit level, environmental conditions, protection requirements, and future expansion plans. Proper selection not only improves system reliability but also minimizes lifecycle costs and simplifies future maintenance.
Confirm the electrical characteristics of the project before selecting the switchgear.
System Rated Voltage: 35kV
Maximum System Voltage: 42kV
Rated Frequency: 50Hz or 60Hz
Maximum Short-Circuit Current: 20kA, 25kA, 31.5kA, or 40kA based on system calculations.
The rated current should be selected according to the maximum operating load while allowing sufficient margin for future expansion. Standard current ratings include 1250A, 1600A, 2000A, 2500A, and 3150A.
The rated short-circuit breaking current and short-time withstand current must be equal to or greater than the calculated fault current of the electrical network. This ensures thermal and dynamic stability during fault conditions.
Different applications require different functional trucks.
Vacuum Circuit Breaker (VCB) Truck: Main switching and protection.
Voltage Transformer (VT/PT) Truck: Voltage measurement and protection.
Isolation Truck: Electrical isolation during maintenance.
Metering Truck: Revenue metering and measurement applications.
Modern KYN61-40.5 switchgear can be equipped with intelligent digital protection devices offering comprehensive protection functions, including:
Overcurrent Protection
Earth Fault Protection
Differential Protection
Breaker Failure Protection
Automatic Reclosing
Fault Recording
Remote Communication and Monitoring
For digital substations and Industry 4.0 applications, additional intelligent monitoring modules can be integrated, including wireless temperature monitoring, partial discharge monitoring, arc flash detection, online insulation monitoring, and remote diagnostic systems.
A 35kV renewable energy substation requires switchgear for a photovoltaic power station with the following parameters:
System Voltage: 35kV
Maximum Short-Circuit Current: 31.5kA
Load Current: 2000A
Automation Requirement: Full SCADA communication with intelligent protection.
Recommended Configuration:
Switchgear Model: KYN61-40.5
Rated Current: 2000A
Rated Short-Circuit Breaking Current: 31.5kA
Circuit Breaker: Vacuum Circuit Breaker (VCB)
Protection System: Digital Protection Relay with IEC 61850 Communication
Accessories: Current Transformers, Voltage Transformers, Surge Arresters, Intelligent Monitoring Unit, and Wireless Temperature Monitoring System.
The installation foundation must be level, rigid, and capable of supporting the weight of the switchgear while maintaining dimensional accuracy throughout its service life.
Every panel must be securely connected to the station grounding network. Reliable grounding is essential for personnel safety and equipment protection.
All busbar contact surfaces should be thoroughly cleaned before installation. Bolts must be tightened according to the manufacturer's specified torque values, and conductive compound should be applied where required.
Control circuits, protection relays, communication wiring, and auxiliary power supplies should be checked carefully before commissioning to ensure correct operation.
Before energization, comprehensive commissioning should include insulation resistance measurement, power frequency withstand testing, mechanical operation testing, interlock verification, relay protection testing, and communication system verification.
Operators should periodically inspect the switchgear enclosure, breaker position indicators, instrument readings, protection relay status, operating mechanism, and temperature conditions.
Inspect busbar connections, cable terminations, grounding continuity, mechanical interlocks, and insulation condition. Infrared thermal imaging is recommended to identify abnormal temperature rises before failures occur.
Annual maintenance should include insulation resistance testing, vacuum circuit breaker mechanical characteristic testing, contact resistance measurement, protection relay calibration, secondary circuit verification, and cleaning of all compartments.
For critical facilities such as utility substations, industrial plants, and renewable energy projects, predictive maintenance combined with online monitoring can significantly improve equipment reliability while reducing unplanned outages.
| Fault | Possible Cause | Recommended Solution |
|---|---|---|
| Circuit Breaker Fails to Open or Close | Control circuit failure, insufficient operating power supply, or protection relay malfunction. | Inspect the control circuit, verify the operating voltage, and test the protection relay. |
| Withdrawable Truck Cannot Be Moved | Mechanical interlock engaged, guide rail deformation, or improper alignment. | Check the interlocking mechanism, inspect the guide rails, and realign the truck. |
| Busbar Overheating | Loose connections, excessive contact resistance, or prolonged overload operation. | Retighten all busbar connections, clean contact surfaces, and verify the system load. |
| Low Insulation Resistance | Moisture, dust contamination, aging insulation materials, or environmental pollution. | Clean insulation components, perform drying treatment, and replace damaged insulation if necessary. |
| Protection Relay Alarm | Incorrect protection settings, wiring issues, or relay malfunction. | Verify protection settings, inspect secondary wiring, and recalibrate or replace the relay. |
Driven by smart grid technologies and digital substations, medium-voltage switchgear is evolving toward higher intelligence, improved reliability, and greater environmental sustainability. The next generation of KYN61-40.5 switchgear integrates advanced sensing, communication, and data analytics technologies to support predictive maintenance and intelligent asset management.
Modern KYN61-40.5 switchgear can integrate wireless temperature sensors, partial discharge monitoring, arc flash detection, humidity monitoring, breaker condition monitoring, and online insulation diagnostics. These intelligent monitoring systems enable real-time equipment health assessment and early fault detection, significantly improving operational reliability.
Support for IEC 61850 communication enables seamless integration with SCADA systems, Energy Management Systems (EMS), and Distribution Management Systems (DMS), providing centralized monitoring, remote control, event recording, and intelligent automation.
Continuous improvements in insulation materials and structural engineering allow manufacturers to reduce cabinet dimensions while maintaining high electrical performance. Compact designs help optimize substation layouts and reduce installation space requirements.
Increasing emphasis is being placed on environmentally sustainable materials, low-carbon manufacturing processes, and recyclable components. Future switchgear solutions will further improve energy efficiency while reducing environmental impact throughout the product lifecycle.
As a professional manufacturer of medium-voltage switchgear and power distribution equipment, we provide complete KYN61-40.5 solutions that comply with international standards and meet the requirements of utility, industrial, and renewable energy applications worldwide.
Our advantages include:
High-quality manufacturing with advanced CNC production equipment and rigorous quality control.
Compliance with IEC 62271-200, GB/T 3906, and ISO quality management standards.
Custom engineering services for rated current, busbar configuration, protection systems, communication protocols, and cabinet dimensions.
Flexible integration with intelligent protection relays, SCADA systems, IEC 61850 communication, and online monitoring platforms.
Comprehensive factory testing, including routine tests, dielectric tests, mechanical operation tests, and factory acceptance testing (FAT).
Fast production schedules, global logistics support, technical documentation, installation guidance, and responsive after-sales service.
OEM and ODM manufacturing services for international distributors, EPC contractors, and utility projects.
The rated voltage is 40.5kV, making it suitable for 35kV medium-voltage power distribution systems.
The switchgear is typically equipped with vacuum circuit breakers (VCBs) from leading international or domestic manufacturers, depending on customer requirements.
Yes. Rated current, short-circuit capacity, protection schemes, communication protocols, busbar arrangements, cabinet dimensions, and intelligent monitoring systems can all be customized to meet specific project requirements.
Yes. Intelligent versions fully support IEC 61850 and can also be configured with Modbus, IEC 60870-5-103, and other industrial communication protocols.
Typical applications include utility substations, power generation plants, renewable energy projects, mining operations, manufacturing facilities, petrochemical plants, transportation infrastructure, airports, commercial buildings, hospitals, and data centers.
With proper installation and preventive maintenance, KYN61-40.5 switchgear can provide reliable service for more than 30 years.
The KYN61-40.5 metal-clad withdrawable switchgear is a highly reliable and proven solution for 35kV medium-voltage power distribution systems. Combining advanced vacuum switching technology, a robust compartmentalized structure, comprehensive five-interlock protection, and intelligent monitoring capabilities, it delivers outstanding operational safety, reliability, and long-term performance.
When selecting KYN61-40.5 switchgear, engineers should carefully evaluate system voltage, rated current, short-circuit capacity, protection requirements, installation environment, and future expansion needs. Choosing a reputable manufacturer with extensive engineering experience and international certifications ensures optimal equipment performance and lower total cost of ownership.
Whether your project involves utility substations, industrial facilities, renewable energy power plants, commercial infrastructure, or smart grid applications, KYN61-40.5 switchgear provides a safe, efficient, and future-ready medium-voltage distribution solution designed to support reliable power delivery for decades.
