Outdoor prefabricated substations rated from 10kV to 35kV are increasingly used in modern power distribution systems due to their compact structure, high reliability, and rapid deployment capabilities. As electrical infrastructure expands across industrial facilities, renewable energy plants, commercial developments, and urban construction projects, the demand for efficient and modular medium voltage solutions continues to grow. Outdoor prefabricated substations integrate medium voltage switchgear, distribution transformers, low voltage panels, and protection systems into a single factory-assembled enclosure, delivering a complete turnkey power distribution solution.
Compared with traditional civil-built substations, outdoor prefabricated substations significantly reduce installation time and on-site construction work. The factory-integrated design ensures consistent quality, improved safety, and simplified commissioning. These substations are designed to operate in harsh environmental conditions such as high temperature, dust, humidity, salt spray, and seismic zones. With voltage levels ranging from 10kV to 35kV, they provide flexible solutions for a wide range of applications.
Outdoor prefabricated substations are widely used in industrial manufacturing plants where reliable power supply is essential for continuous operation. Heavy industries such as steel mills, cement factories, petrochemical plants, and mining operations require stable medium voltage distribution. The integrated structure of prefabricated substations ensures quick installation near load centers, reducing cable losses and improving energy efficiency.
Renewable energy projects also rely heavily on 10kV–35kV prefabricated substations. Solar photovoltaic farms and wind power stations use these substations to collect generated power and connect to the utility grid. The modular design allows easy expansion as project capacity increases. These substations may include reactive power compensation and monitoring systems to maintain grid stability.
Urban infrastructure projects such as airports, rail transit systems, and large commercial complexes benefit from outdoor prefabricated substations due to their compact footprint and minimal civil engineering requirements. These substations can be installed in limited spaces while maintaining high performance and safety.
Outdoor prefabricated substations are typically designed in accordance with international IEC standards to ensure safety and performance. Compliance with IEC 62271 for medium voltage switchgear, IEC 60076 for transformers, and IEC 61439 for low voltage assemblies guarantees reliable operation. These standards define insulation levels, temperature rise limits, short-circuit withstand capability, and protection requirements.
IEC-compliant substations provide global compatibility, making them suitable for international engineering projects. The standardized design simplifies integration with existing power systems and ensures long-term operational stability.

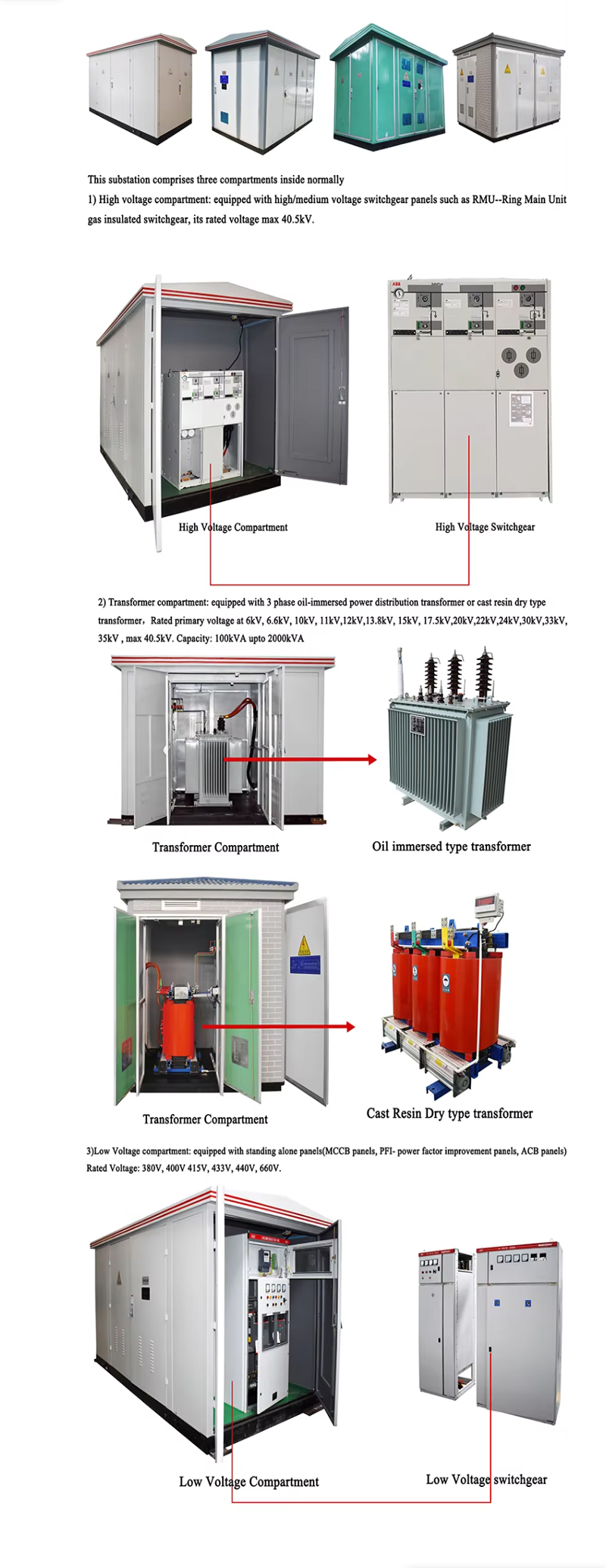

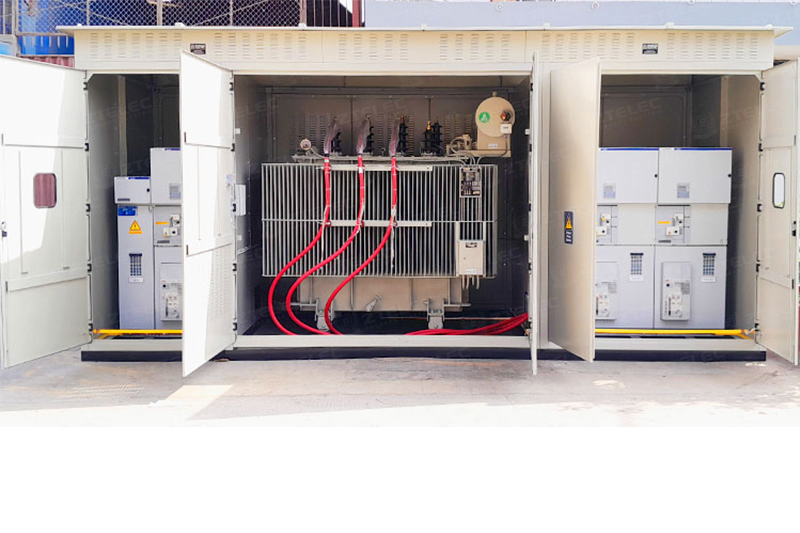

The compact structure of outdoor prefabricated substations integrates multiple components into separate compartments within a single enclosure. Typically, the substation includes medium voltage switchgear compartment, transformer compartment, and low voltage distribution compartment. Each section is isolated to enhance operational safety and simplify maintenance.
The enclosure is usually fabricated from galvanized steel, stainless steel, or aluminum alloy. Advanced anti-corrosion treatment and weatherproof coatings ensure long service life in outdoor environments. Ventilation systems and thermal insulation maintain optimal operating temperature even under heavy load conditions.
One of the main advantages is reduced construction time. Since the equipment is factory assembled and tested, on-site installation mainly involves foundation preparation and cable connections. This significantly shortens project schedules and reduces labor costs.
Another key benefit is enhanced reliability. Factory testing ensures proper wiring, insulation coordination, and functional performance. This minimizes commissioning risks and ensures safe operation from the first energization.
Outdoor prefabricated substations also provide flexibility. Modular configurations allow customization based on voltage level, transformer capacity, and protection requirements. Additional features such as remote monitoring, intelligent control, and communication interfaces can be integrated.
A typical outdoor prefabricated substation includes medium voltage switchgear, power transformer, low voltage distribution panel, protection relays, and auxiliary systems. Medium voltage switchgear may use vacuum circuit breakers or load break switches depending on system requirements.
The transformer is the core component responsible for voltage conversion. Oil-immersed transformers are commonly used in outdoor substations due to their excellent cooling performance and high capacity. Dry-type transformers may also be used when environmental protection or fire safety requirements are critical.
Protection systems include overcurrent protection, earth fault protection, and transformer protection. Modern substations may incorporate intelligent monitoring systems for real-time data acquisition and remote operation.
Outdoor substations are designed to withstand harsh environmental conditions. High protection level enclosures prevent dust and moisture ingress. Anti-condensation heaters reduce humidity inside the compartments. Optional IP54 or IP65 protection ensures reliable performance in challenging environments.
For coastal areas, anti-corrosion coating and stainless steel enclosures provide resistance against salt spray. For desert environments, sealed structures and enhanced ventilation prevent overheating. Seismic design options are available for earthquake-prone regions.
Outdoor prefabricated substations rated 10kV–35kV are ideal for renewable energy integration. They collect power from solar inverters or wind turbines and step up voltage for transmission to the grid. Reactive power compensation and harmonic filtering may be included to maintain power quality.
These substations support modular expansion, allowing renewable energy projects to increase capacity without major redesign. Intelligent monitoring systems enable remote management and improve operational efficiency.
Installation of outdoor prefabricated substations is simple and efficient. After delivery, the unit is placed on a prepared foundation and connected to incoming and outgoing cables. This reduces on-site work and improves project efficiency.
Maintenance is also simplified due to compartmentalized design. Each section can be accessed independently, ensuring safe operation. Monitoring systems allow predictive maintenance, reducing downtime and operational costs.
Outdoor prefabricated substations can be customized based on project requirements. Options include different transformer capacities, switchgear types, protection schemes, and enclosure materials. Additional features such as SCADA communication, energy metering, and automation systems can be integrated.
Multiple incoming and outgoing feeders can be configured to support complex distribution networks. Optional lighting, ventilation, and climate control systems enhance operational reliability.
The outdoor prefabricated substation 10kV–35kV provides a compact, reliable, and efficient solution for modern medium voltage power distribution. With IEC-compliant design, modular structure, and factory-tested quality, these substations reduce installation time and improve operational performance.
Widely used in industrial plants, renewable energy projects, infrastructure development, and utility distribution networks, outdoor prefabricated substations offer flexibility and scalability. Their robust enclosure, advanced protection systems, and customizable configurations make them an ideal choice for safe and efficient outdoor power distribution applications.
